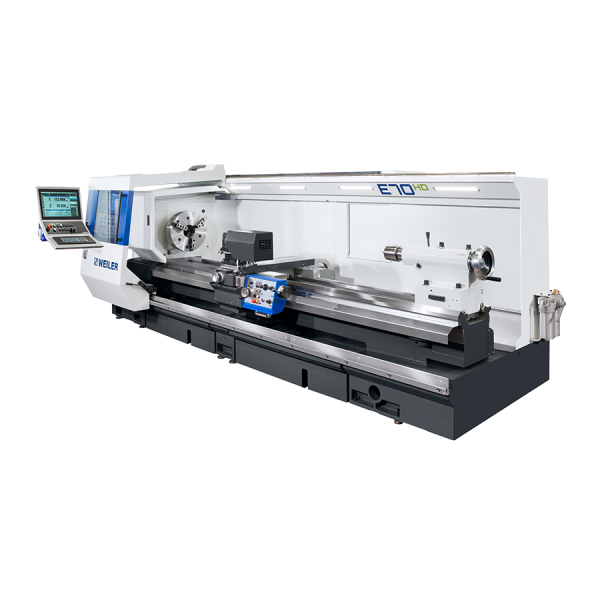

The heavy-duty, powerful and energy-efficient production lathe with optimum accessibility in the WEILER E-Series range
The allrounder for high productivity applications with a high chip removal rate for turning lengths up to 6 metres and spindle bores up to 216 mm.
A smart range of optional features ensure a high level of efficiency for turning through to milling operations.
Precise and universally usable, it impresses through:
| WORKING RANGE | |
| Centre height | 400 mm |
| Swing over bed | 800 mm |
| Swing over cross slide | 510 mm |
| Distance between centres | 1.000 – 6.000 mm |
| LATHE SPINDLE | |
| Spindle nose acc. to DIN 55027 (DIN ISO 702-3) | size 11 |
| Spindle bore | 128 mm* |
| Spindle diameter in front bearing | 180 mm |
| MAIN DRIVE | |
| Drive power 60% / 100% duty cycle | 37/30 kW |
| Speed range | 1 – 1.800 rpm |
| Number of speeds | stepless |
| FEED RANGE | |
| Number of feeds | stepless |
| Feed force longitudinal | 0,001 – 50 mm/turn |
| Feed force transverse | 0,001 – 50 mm/turn |
| Feed force longitudinal | 25.000 N |
| Feed force transverse | 13.000 N |
| Max. Feed range longitudinal and transverse | 10/5 m/min |
| THREAD CUTTING RANGE | |
| Metric threads | 0,1 – 2.000 mm |
| Inch threads | 112 – 1/64 TPI |
| TAILSTOCK | |
| Quill diameter | 115 (140) mm |
| Quill travel | 225 (300) mm |
| Quill taper according to DIN 228 | MK 6 |
| Acceptance Accuracy | DIN 8605 |
Spindle bore on request: *165, 216 mm

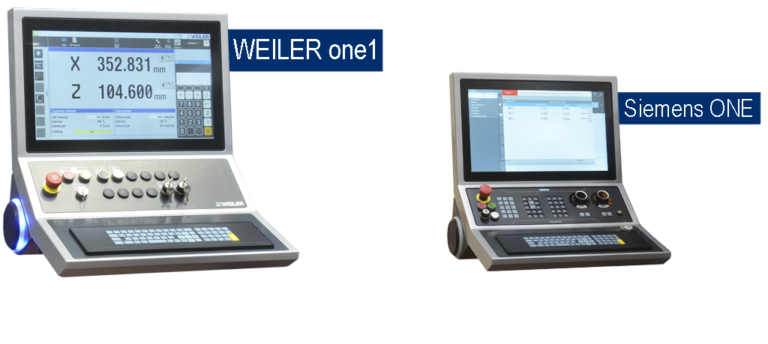

Fast and simple communication between man and machine.
The smart user software developed by WEILER on the basis of the latest Siemens controller generation. It quickly and simply guides the operator to the finished workpiece – even without prior programming knowledge.
Three compelling arguments for your production:
The advantages for you at a glance:
Also available with Siemens ShopTurn control.
The top end of the range of WEILER E-Series precision lathes. Powerful and energy-efficient with optimum accessibility.
The machine for large-size workpieces in high productivity applications with a high chip removal rate for turning lengths up to 15 metres and spindle bores up to 450 mm.
A smart range of optional features ensure a high level of efficiency for turning through to milling operations.
Precise and universally usable, it impresses through:
The precision giant. A heavy-duty, powerful and energy-efficient WEILER E-Series production lathe with optimum accessibility.
The machine for heavy-duty workpieces up to 10 tons in high productivity applications with a high chip removal rate for turning lengths up to 15 metres and spindle bores up to 362 mm.
A smart range of optional features ensure a high level of efficiency for turning through to milling operations.
Precise and universally usable, it impresses through:
The smallest WEILER E-Series cycle-controlled precision lathe.
The precision lathe for high productivity applications in production, tool making, research institutes and repair workshops as well as in apprenticeships and vocational training.
High quality, energy-efficient, precise and universally usable.
It impresses through:
